平板显示器用胶解决方案

烟台万华聚氨酯合成材料有限公司官网欢迎您！

企业邮箱 |

首页解决方案智能电子

平板显示器用胶解决方案

时间 : 2020-12-16 14:47:00

随着显示技术的发展，对显示器的体积、重量、功耗、窄边框等性能要求越来越高，因此对显示器用胶的功能性要求也越来越严格。

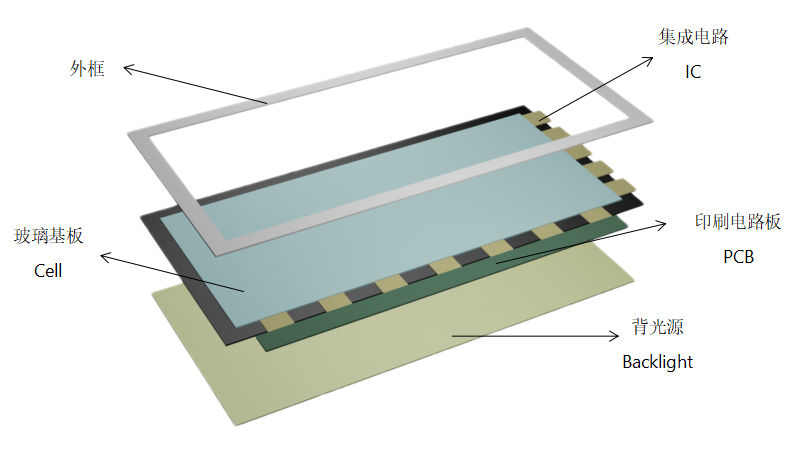

以典型的TFT-LCD模组为例，产品结构主要包括玻璃基板（cell）、背光源（backlight）、集成电路（integrated circuit，IC）、印刷电路板（printed circuit board ，PCB）等。其中，常见胶黏剂类型有防湿绝缘、遮光保护、结构粘接、液晶封边、排线补强、导电等。万华合材针对显示器不同部位需求，研发相应产品，可以为客户提供全套用胶解决方案。

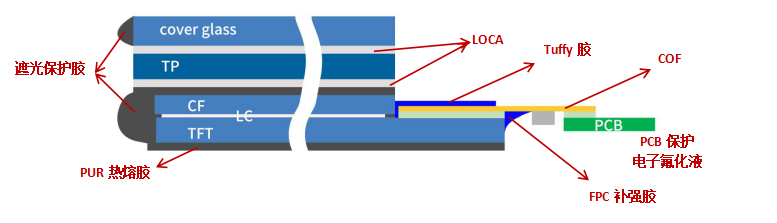

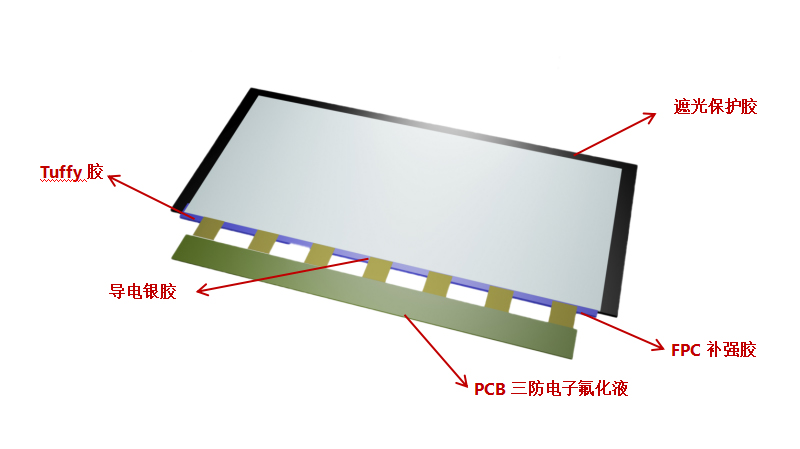

TFT-LCD屏结构 TFT-LCD屏用胶点

产品

应用

特点

（点击查看详情）

防湿绝缘、补强

保护IC和相关微电路

30~60秒快干

低透湿度

耐玻璃清洁剂

遮光保护胶

（点击查看详情）

无边框侧边遮光、

缓冲保护

低固化能量

高OD值

耐水煮及耐玻璃清洗剂

导电银胶

（点击查看详情）

IPS屏的CF层和TFT层的导通

电场屏蔽

不腐蚀偏光板

成膜薄，电导率优

固化快

ITO保护胶

（点击查看详情）

保护ITO电路

防潮、绝缘

低固化能量

低透湿度

易流平、施胶薄

（点击查看详情）

玻璃与ITO膜、PET、PC、PMMA等的粘接

透光率好

耐黄变、耐老化

（点击查看详情）

显示屏幕与面板、面框的结构粘接

防水防尘、耐高低温

易于控制胶水粗细

封PIN、补强胶

液晶封边

FPC排线补强

固化快

胶层柔韧

减震、耐冲击
