微型马达用胶解决方案

时间 : 2021-01-26 14:32:58

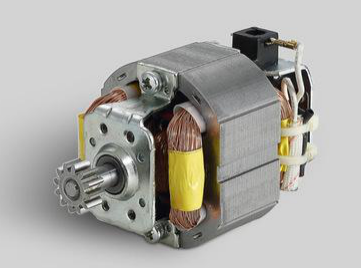

微型马达，基本组成与普通马达相似，包括定子、转子、电枢绕组、电刷等部件，但结构格外紧凑。将微小的材料和性能各异的零件可靠地装配成完整的微型马达产品，是微型马达制造中重要的工艺过程。胶黏剂的粘接在其中发挥了重要的作用。在微型马达中，常用的胶黏剂包括：双组分环氧胶，UV厌氧双固化胶，单组分结构胶，螺纹锁固胶，圆柱固持胶，瞬干胶等。

微型马达用胶解决方案

使用胶粘剂粘接微型马达的优点：

1、应用范围广，能够胶接同种或不同种材料的零件；

2、低的固化温度，可以避免高温环境对微零件造成的尺寸变化、应力不均甚至性能破坏等影响；

3、高的固化强度和均匀的应力分布；

4、易于实现密封、传导或绝缘等作用。

微型马达用胶解决方案

万华合材针对微型马达不同部位需求，研发相应产品，可为客户提供全套用胶解决方案。

产品	应用	特点

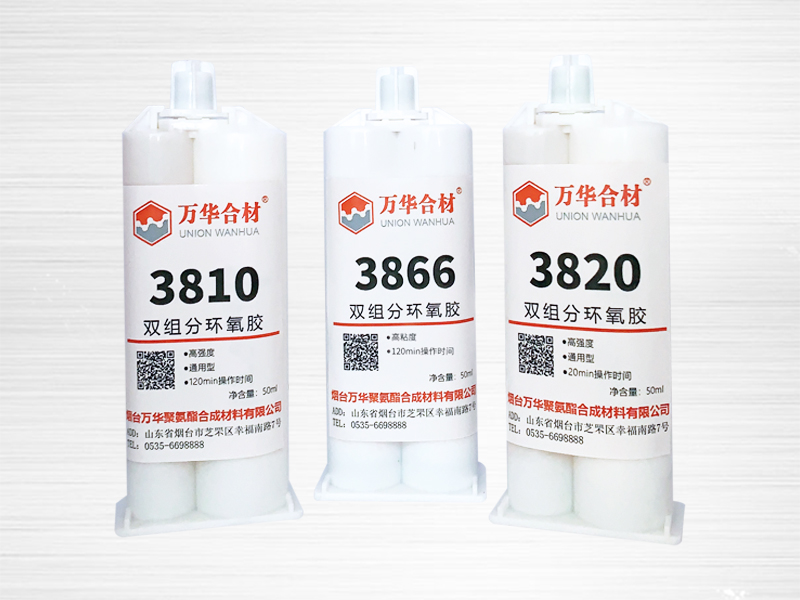

双组分环氧胶	端盖与线圈焊点固定风扇粘接	耐冲击、电绝缘高剪切强度

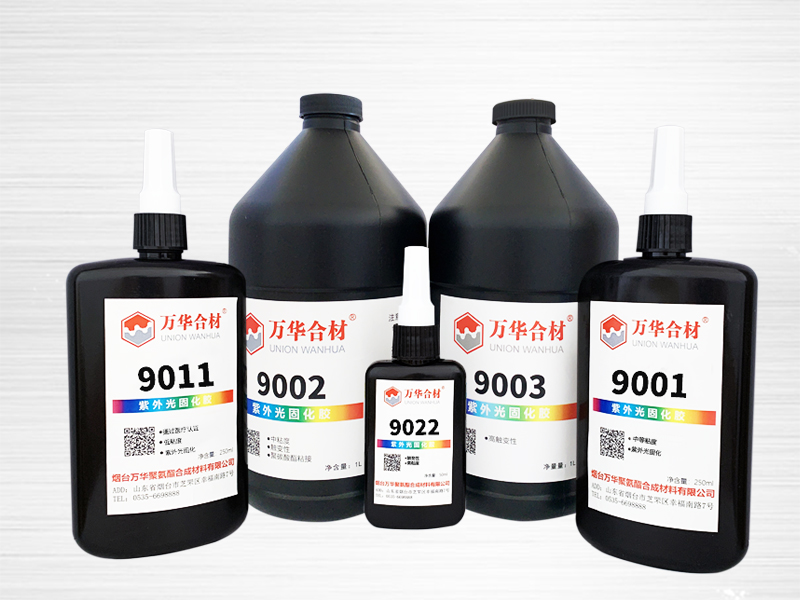

UV厌氧双固化胶	导线、线束固定	固化速度快表干高粘度适中

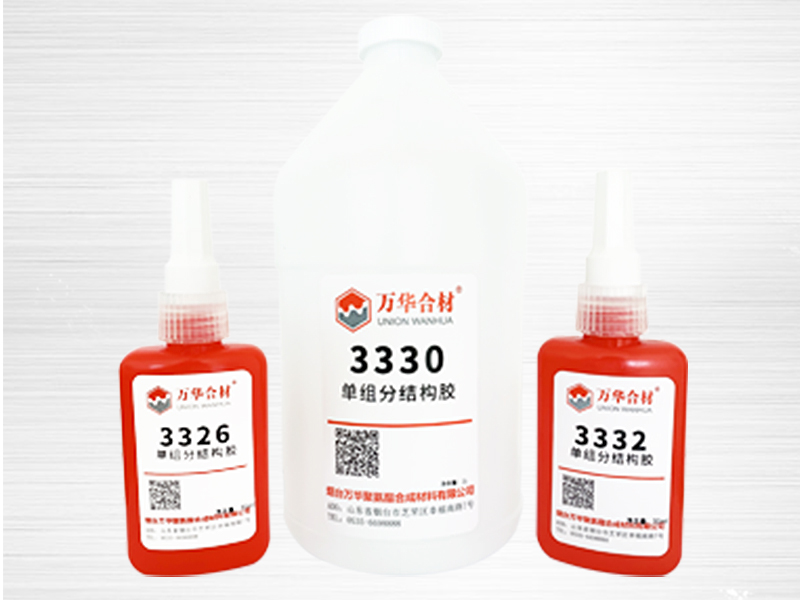

单组分结构胶	电刷粘接固定磁瓦粘接	粘度高室温固化固化速度快
螺纹锁固胶	螺栓锁固	油溶性好易拆卸耐高温
圆柱固持胶	马达中转子与轴承的固定	高强度耐高温适合径向间隙 0.25mm 以内间隙配合的金属孔轴固持
瞬干胶	引线固定	固化快低白化适合表面不敏感、难粘接材料

扩展阅读

双组分环氧胶介绍

单组分结构胶介绍

UV厌氧双固化胶介绍

瞬干胶介绍
